Convertisseur LED 60W 5V S-60-5

productivité:
50000/Month
Lieu d'origine:
Zhejiang
Capacité d'approvisionnement:
50000/Month
Certificats :
CE, UL, RoHS, ISO, CCC, CB, CSA

Informations de base

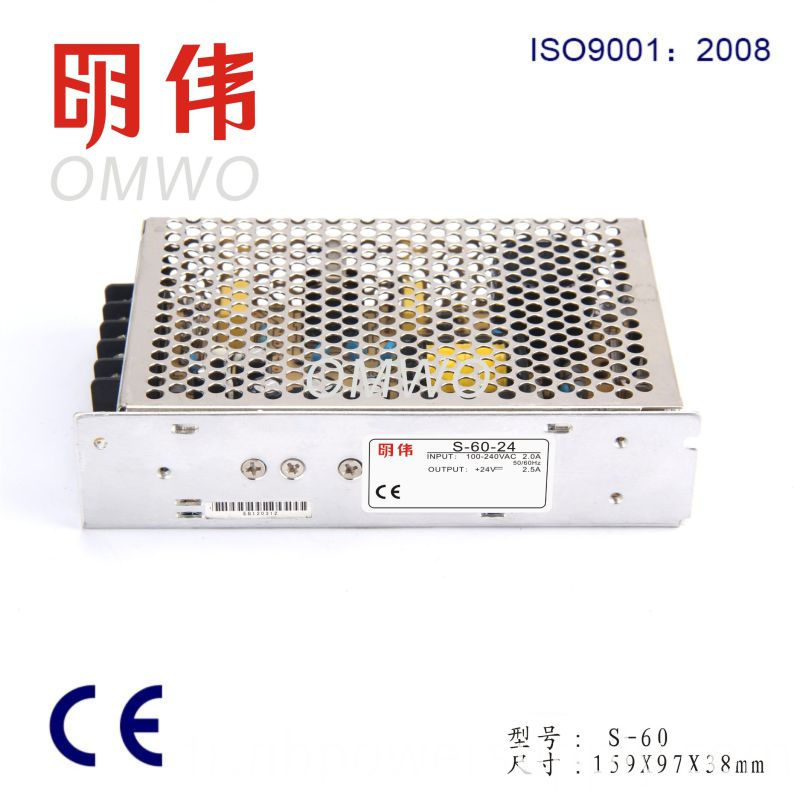

Modèle:  S-60-24

Description du produit

Modèle N °: S-60-24 Garantie:> 2 ans Tension d'entrée: 24V Mode de démarrage: Alimentation par commutation auto-excitée Système de fourniture d'alimentation: Système de modulation de l'équipement de distribution des bornes: PFAW Marque: Omwo Marque déposée: OMWO Origine: Zhejiang Type de sortie : Puissance de sortie unique: 1 - 50W Mode de connexion: Série Commutation Tension d'alimentation Mode de régulation: Fréquence Type de modulation Transmission d'énergie: Transmission bidirectionnelle Certificat: CE, UL, RoHS, ISO, CCC, CB, CSA Taille: 159 * 98 * 38mm Spécifications: 159 * 98 * 38mm Code HS: 8504401990 1. Haute efficacité et bon prix
2. Filtre EMI intégré
Test de gravure à pleine charge de 3.100%
4. Sortie d'ondulation et de bruit de sortie
5.Protection: en cas de charge / surtension / court-circuit
6. GARANTIE À LA VIE! Cifications
MODEL S-60-5 S-60-12 S-60-15 S-60-24
OUTPUT DC VOLTAGE  5V 12V 15V 24V
RATED CURRENT 12A 5A 4A 2.5A
CURRENT RANGE 0 ~ 12A 0 ~ 5A 0 ~ 4A 0 ~ 2.5A
RATED POWER 60W 60W 60W 60W
RIPPLE & NOISE (max.) 120mVp-p 120mVp-p 150mVp-p 150mVp-p
VOLTAGE ADJ. RANGE 4.75 ~ 5.5V 10.8 ~ 13.2V 13.5 ~ 16.5V 21.6 ~ 26.4V
VOLTAGE TOLERANCE  ±2.0% ±1.0% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±1.0% ±0.5% ±0.5% ±0.5%
SETUP, RISE TIME 300ms, 50ms, /230VAC      800ms, 50ms/115VAC at full load
HOLD TIME 90ms/230VAC      12ms/115VAC at full load
INPUT VOLTAGE RANGE 85~132VAC/170~264VACselected by switch
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 80% 85% 85% 86%
AC CURRENT 2A/115VAC       1A/230VAC
INRUSH CURRENT (max.) COLD START 20A/115VAC 40A/230VAC
LEAKAGE CURRENT <3.5mA / 240VAC
PROTECTION OVERLOAD 105 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed.
OVER VOLTAGE  5.75 ~ 6.75V 13.8 ~ 16.2V 17.25 ~ 20.25V 27.6 ~ 32.4V
Protection type : Hiccup mode, recovers automatically after fault condition is removed.
ENVIRONMENT WORKING TEMP. -10 ~ +60°C (Refer to output load derating curve)
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85°C ,10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC  SAFETY STANDARDS Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
EMS  EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved
OTHERS MTBF 316.2K hrs min. MIL-HDBK-217F (25)
DIMENSION 159*97*38mm (L*W*H)
PACKING 0.48Kg; 40pcs/20Kg
NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

LED Driver 60W 5V S-60-5LED Driver 60W 5V S-60-5LED Driver 60W 5V S-60-5LED Driver 60W 5V S-60-5LED Driver 60W 5V S-60-5
