Nes-100-7.5 AC DC Switch Alimentation LED Driver

Informations de base

Modèle: MWNES-100-7.5

Description du produit

Modèle NO .: MWNES-100-7.5 Garantie:> 2 ans Tension d'entrée: 15V Mode de démarrage: Alimentation par commutation auto-excitée Système de fourniture d'alimentation: Système de modulation de l'équipement de distribution des bornes: PFAW Marque: Omwo Spécifications: 159 * 98 * 38 mm HS Code: 8504401990 Type de sortie: Single Puissance de sortie: 1 - 50W Mode de connexion: Série Commutation Tension d'alimentation Mode de régulation: Fréquence Type de modulation Transmission d'énergie: Transmission bidirectionnelle Certification: CE, UL, RoHS, ISO, CCC, CB, CSA Trademark : OMWO Origine: Zhejiang Spécifications NES-100-7.5 MEAN WELL /
AC DC NES-100-7.5
Haute qualité / NES-100-7.5
UL CE NES-100-7.5
2 ans de garantie NES-100-7.5
100W NES-100-7.5 MEAN WELL /
* Entrée AC universelle / Gamme complète * Protections: Court-circuit / Surcharge / Surtension / Sur température * Refroidissement par convection à l'air libre * 100% test de brûlure à pleine charge * 2 ans de garantie

MODEL		NES-100-5	NES-100-7.5	NES-100-9	NES-100-12	NES-100-15	NES-100-24	NES-100-48
OUTPUT	DC VOLTAGE	5V	7.5V	9V	12V	15V	24V	48V
	CURRENT RANGE	0~ 20A	0~13.6A	0~11.2A	0~8.5A	0 ~ 7A	0~4.5A	0~2.3A
	RATED CURRENT	20A	13.6A	11.2A	8.5A	7A	4.5A	2.3A
	RATED POWER	100W	102W	100.8W	102W	105W	108W	110.4W
	RIPPLE & NOISE (max.) Note.2	80mVp-p	120mVp-p	120mVp-p	120mVp-p	120mVp-p	120mVp-p	150mVp-p
	VOLTAGE ADJ. RANGE	4.75 ~ 5.5V	7.13 ~ 8.3V	8.55 ~ 9.9V	11.4 ~ 13.2V	14.25 ~ 16.5V	22.8 ~ 26.4V	45.6 ~ 52.8V
	VOLTAGE TOLERANCE NOTE.3	2.0%	1.0%	1.0%	1.0%	1.0%	1.0%	1.0%
	LINE REGULATION	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%
	LOAD REGULATION	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%
	SETUP, RISE TIME NOTE.5	500ms, 20ms/230VAC 500ms, 20ms/115VAC at full load
	HOLD UP TIME (Typ.)	30ms/230VAC 25ms/115VAC at full load
INPUT	VOLTAGE RANGE	85 ~ 132VAC / 176 ~ 264VAC selected by switch 248 ~ 373VDC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	80%	81%	81%	83%	84%	86%	86%
	AC CURRENT (Typ.)	2A/115VAC 1.2A/230VAC
	INRUSH, CURRENT (Typ.)	COLD START 36A
	LEAKAGE CURRENT	<2mA / 240VAC
PROTECTION	OVER LOAD	110 ~ 150% rated output power
	OVER LOAD	Protection type : Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE	5.75 ~ 6.75V	8.6 ~ 10.1V	10.4 ~ 12.2V	13.8 ~ 16.2V	17.25 ~ 20.25V	27.6 ~ 32.4V	55.2 ~ 64.8V
	OVER VOLTAGE	Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT	WORKING TEMP.	-20 ~ +60oC (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 ~ +85oC , 10 ~ 95% RH
	TEMP. COEFFICIENT	0.03%/oC (0 ~ 45oC )
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY &EMC(Note 4)	SAFETY STANDARDS	UL60950-1, CB(IEC60950-1) approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
	EMI CONDUCTION & RADIATION	Compliance to EN55022 (CISPR22) Class B
	HARMONIC CURRENT	Compliance to EN61000-3-2,-3
	EMS IMMUNITY	Compliance to EN61000-4-2, 3, 4, 5, 6, 8,11, ENV50204, EN55024, EN61000-6-1, light industry level, criteria A
OTHERS	MTBF	320.7Khrs min. MIL-HDBK-217F (25 )

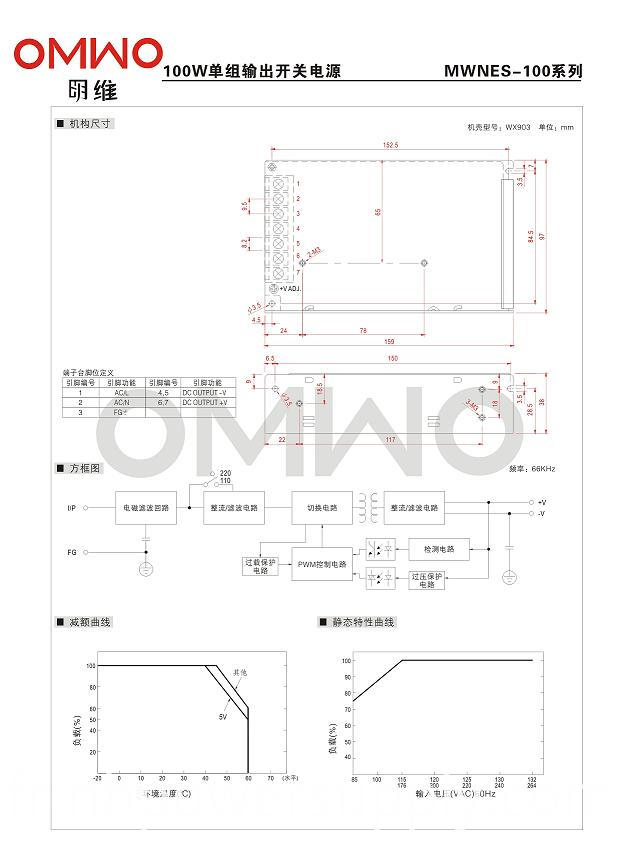

	DIMENSION	1599738mm (LWH)
	PACKING	0.55Kg; 30pcs/17.5Kg/0.97CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25oCof ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 0% to 100% rated load. 6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC directives.
