Accueil > Liste de Produits > Alimentation de commutation à sortie unique > Nes-35-5 35W 5V 7A Alimentation de commutation Alimentation par commutation AC-DC

Nes-35-5 35W 5V 7A Alimentation de commutation Alimentation par commutation AC-DC

Informations de base

Modèle:  MWNES-35-5

Description du produit

Modèle N °: MWNES-35-5 Garantie:> 2 ans Tension d'entrée: 24V Mode de démarrage: Alimentation par commutation auto-excitée Système de fourniture d'alimentation: Système de modulation de l'équipement de distribution de puissance: PFAW Marque: Omwo Spécifications: 159 * 98 * 38 mm HS Code: 8504401990 Type de sortie: Single Puissance de sortie: 1 - 50W Mode de connexion: Série Commutation Tension d'alimentation Mode de régulation: Fréquence Type de modulation Transmission d'énergie: Transmission bidirectionnelle Certification: CE, UL, RoHS, ISO, CCC, CB, CSA Trademark : OMWO Origine: Zhejiang 35W Single Output Switching Power Supply NES-35 series
Caractéristiques:
Entrée CA universelle / gamme complète
Protections: court-circuit / surcharge / surtension
Refroidissement par convection à air libre
Test de 100% à pleine charge
2 ans de garantie
Packaging Details: 45pcs/17.2Kg/CTN
Delivery Detail: 3days
NES-35-5
* Entrée AC universelle / gamme complète
* Protections: court-circuit / surcharge / surtension / sur température
* Refroidissement par convection à l'air libre
* 100% test de brûlage à pleine charge
* 2 ans de garantie
MODEL NES-35-5  NES-35-12 NES-35-15 NES-35-24 NES-35-48





OUTPUT
DC VOLTAGE 5V 12V 15V 24V 48V
CURRENT RANGE 0 ~ 7A  0 ~ 3A  0 ~ 2.4A  0 ~ 1.5A 0 ~ 0.8A
RATED CURRENT 7A 3A 2.4A 1.5A 0.8A
RATED POWER 35W 36W 36W 36W 38.4W
RIPPLE & NOISE (max.)  Note.2 80mVp-p  120mVp-p 150mVp-p 200mVp-p 240mVp-p
VOLTAGE ADJ. RANGE 4.75 ~ 5.5V  10.8 ~ 13.2V  13.5 ~ 16.5V 21.6 ~ 26.4V  43.2 ~ 52.8V
VOLTAGE TOLERANCE
NOTE.3
2.0% 1.0% 1.0% 1.0%   1.0%
LINE REGULATION 0.5% 0.5% 0.5% 0.5% 0.5%
LOAD REGULATION 0.5% 0.5% 0.5% 0.5% 0.5%
SETUP, RISE TIME NOTE.5 500ms, 30ms/230VAC   1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 50ms/230VAC    10ms/115VAC at full load


INPUT
VOLTAGE RANGE 85 ~ 264VAC   120 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 78% 81% 83% 85% 86%
AC CURRENT (Typ.) 0.75A/115VAC    0.5 A/230VAC
INRUSH CURRENT (Typ.) COLD START 45A
LEAKAGE CURRENT <2mA / 240VAC

PROTECTION
OVER LOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 5.75 ~ 6.75V   13.8 ~ 16.2V  17.25 ~ 20.25V 27.6 ~ 32.4V   55.2 ~ 64.8V
Protection type : Shut down o/p voltage, re-power on to recover


ENVIRONMENT
WORKING TEMP. -20 ~ +60oC (Refer to output load derating curve)
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85oC , 10 ~ 95% RH
TEMP. COEFFICIENT 0.03%/oC (0 ~ 45oC )
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for  60min. each along X, Y, Z axes



SAFETY &EMC(Note 4)
SAFETY STANDARDS UL60950-1, CB(IEC60950-1) approved
WITHSTAND VOLTAGE  I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
EMI CONDUCTION & RADIATION Compliance to EN55022 (CISPR22) Class B
HARMONIC CURRENT Compliance to EN61000-3-2,-3
EMS
IMMUNITY
Compliance to EN61000-4-2, 3, 4, 5, 6, 8,11, ENV50204, EN55024, EN61000-6-1, light industry level, criteria A
 OTHERS MTBF 394Khrs min. MIL-HDBK-217F (25 )

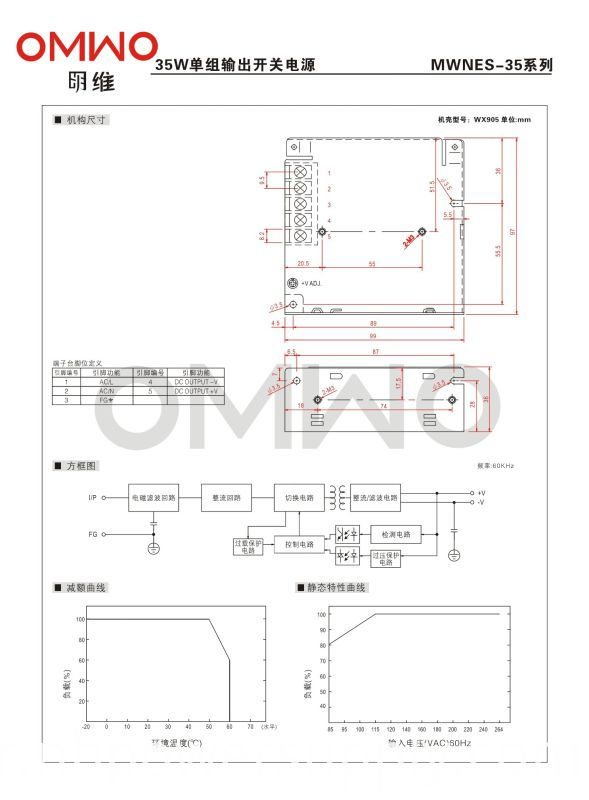

DIMENSION 99*97*36mm (L*W*H)
PACKING    0.36Kg; 45pcs/17.2Kg/0.93CUFT
NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25oCof ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC directives.
